Installing the front module bracket

Check

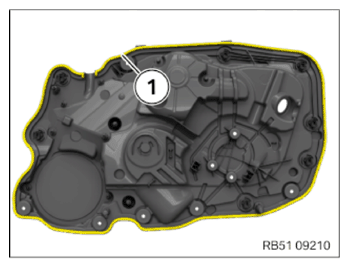

• Check the seal (1) on the module bracket for damage.

Courtesy of BMW OF NORTH AMERICA, INC.

Result

» Seal (1) is damaged.

Measure

• Replace the module bracket.

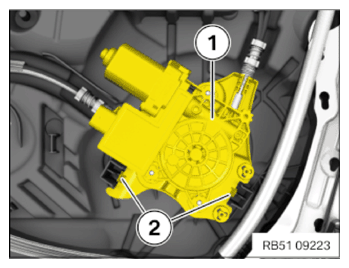

• Clip power window (1) into detents (2) of the module bracket.
• Install the module bracket.

  Courtesy of BMW OF NORTH AMERICA, INC.

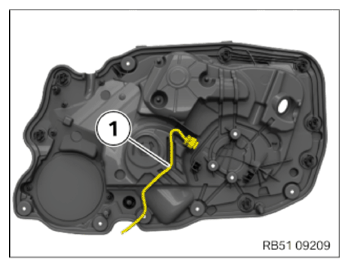

• Clip in the wiring harness (1) on the module bracket.

  Courtesy of BMW OF NORTH AMERICA, INC.

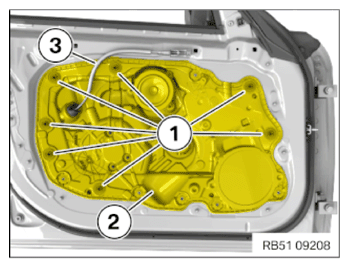

• Position the module bracket (2) on the door. Guide Bowden cable (3) for the door opener into module bracket (2).
• Lock the bayonet closures (1) by rotating them.

  Courtesy of BMW OF NORTH AMERICA, INC.

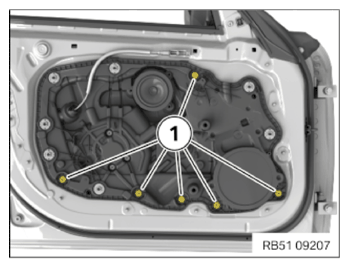

• Tighten the screws (1).
  TIGHTENING TORQUE SPECIFICATION



  Module bracket to front door
  Torx socket M5x12	Tightening torque	8 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

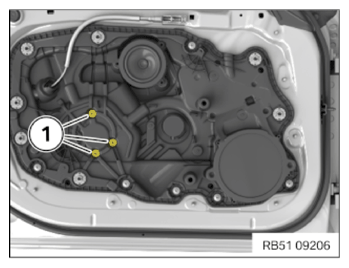

• Tighten nuts (1).
  TIGHTENING TORQUE SPECIFICATION



  Power window on module bracket
  Hexagon nut	Tightening torque	9.5 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

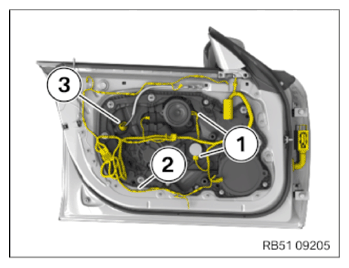

• Install the rubber grommet (3) of the Bowden cable for the door opener.
• Clip in the wiring harness (2) on the module bracket.
• Connect and lock both connectors (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING THE FRONT DOOR TRIM PANEL .
• Refer to CONNECTING ALL BATTERY GROUND LEADS .
• Refer to ACTIVATING THE 48 V ELECTRICAL SYSTEM .
