Installing the tailgate lock

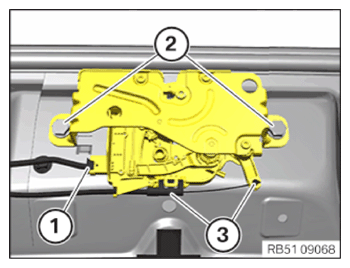

• Tighten down screws (2)  .
  TIGHTENING TORQUE SPECIFICATION



  Tailgate lock to body
  Hexagon screw M8x20	Tightening torque	19 Nm

• Connect connector (1)  .
• Version with emergency release:

  Hang in the Bowden cable (3)  .

  Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING LOADING EDGE TRIM .
• Refer to INSTALLING LUGGAGE COMPARTMENT FLOOR COVERING .
• Refer to ADJUSTING THE LOWER PART OF THE TAILGATE LOCKING LOWER SECTION .
