Adjusting rear lid lock

NOTE: TECHNICAL INFORMATION
Notes for the gap dimensions of the body form the basis of this REP and it is mandatory to observe them.
For additional information see: GAP DIMENSIONS FOR BODY .

NOTE: Schematic diagram is for example purposes. Some parts may differ in certain details.

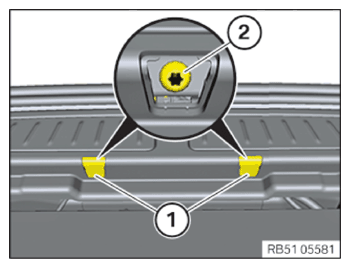

Lever out the covers (1) with a suitable tool.
Slacken the screws (2) below that until the trunk lid lock can be shifted.
Adjusting tailgate lock.

Courtesy of BMW OF NORTH AMERICA, INC.

Check

Check the gap dimensions between the trunk lid and the bumper cover.

TECHNICAL DATA SPECIFICATION

Gap dimension trunk lid to rear bumper panel
1 trunk lid; 2 rear bumper panel Courtesy of BMW OF NORTH AMERICA, INC.	a	5.1 ^+1.5_-1.5 mm

Result

» Gap dimensions do not correspond to the specifications.

Measure

Adjusting tailgate lock.

Tighten down screws (2).

TIGHTENING TORQUE SPECIFICATION

Tailgate lock to body
M8x70 screw	Tightening torque	19 Nm

Clip in the covers (1).
