Installing the model inscription at the rear
CAUTION:
Laser beam
.
Injury hazard!
Injury hazard!
- Do not look into the laser beam.
- Park the vehicle and the special tool 2 407 566 on a flat and even surface.
- Mount the laser on the tripod.
- Switch on laser (Position without automatic level).
- Activate laser horizontally and vertically.
- Place special tool behind the vehicle and center.

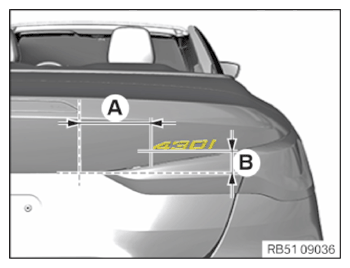

- Align vertical laser beam (A) according to specified dimension.TECHNICAL DATA SPECIFICATION
Model inscription on the left side of the trunk lid Dimension A from corner of the trunk lid. Brake lamp 150 mm - Align horizontal laser beam (B) according to specified dimension.TECHNICAL DATA SPECIFICATION
Model inscription on the left side of the trunk lid Dimension B from horizontal edge of trunk lid 50 mm - Clean the adhesive area.CONSUMABLE SPECIFICATION
Cleaning agent R2 500 ml 83190417324 - Adhere to the air drying time of 2 min.
- Pull off the liner from the adhesive strip of the model inscription.
- Align the model inscription on the laser beams as shown, position it on the tailgate and press down.
- Place special tool behind the vehicle and center.

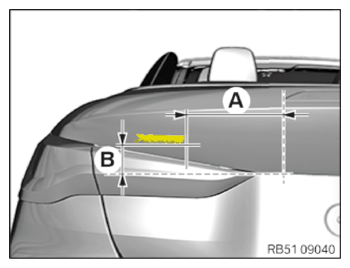

- Align vertical laser beam (A) according to specified dimension.TECHNICAL DATA SPECIFICATION
Model inscription on the right side of the trunk lid Dimension A from corner of the trunk lid. Brake lamp 170 mm - Align horizontal laser beam (B) according to specified dimension.TECHNICAL DATA SPECIFICATION
Model inscription on the left side of the trunk lid Dimension B from horizontal edge of trunk lid 50 mm - Clean the adhesive area.CONSUMABLE SPECIFICATION
Cleaning agent R2 500 ml 83190417324 - Adhere to the air drying time of 2 min.
- Pull off the liner from the adhesive strip of the model inscription.
- Align the model inscription on the laser beams as shown, position it on the tailgate and press down.
