Installing the left and right reflector
NOTE:
Description is for left component only. Procedure on the right side is identical.
Installing rear reflector
Check

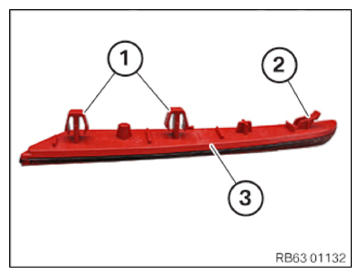

- Check the snap-in lugs (1) and the guide (2) on the rear reflector (3) for damage.
Result
» Detents (1) or the guide (2) are damaged.
Measure
- Replace rear reflector (3).
NOTE:
Schematic diagram is for example purposes. Some parts may differ in certain details.

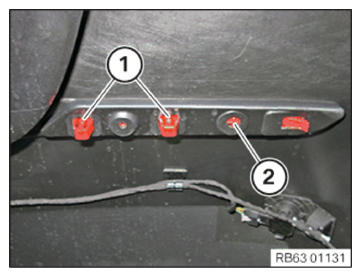

- Position rear reflector (2) in bumper cover and clip in with the snap-in lugs (1).
Follow-up work
- Refer to INSTALLING THE REAR BUMPER COVER .
- Refer to INSTALLING THE TAIL LIGHT ON THE LEFT AND RIGHT SIDE PANELS .
- Refer to INSTALLING THE TRIM IN THE WATER CHANNEL ON THE LEFT AND RIGHT .
- Refer to INSTALLING LUGGAGE COMPARTMENT WHEEL ARCH TRIM PANEL LEFT AND RIGHT PARTIALLY .
- Refer to INSTALLING LOADING EDGE TRIM .
- Refer to INSTALLING LUGGAGE COMPARTMENT FLOOR COVERING .
