If installed: Partially installing the ultrasonic sensors (additional work with Park Distance Control (PDC)

NOTE: Schematic diagram is for example purposes. Some parts may differ in certain details.

• Check decoupling ring (1) for damage and, if necessary, replace it.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Position the wiring harness with the connected ultrasonic sensors.
• Clip the wiring harness into the bumper cover with all the holders.

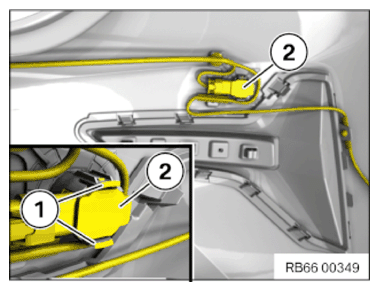

• Guide in ultrasonic sensor (2) and clip it into detents (1).
• Perform the steps on all other ultrasonic sensors.

Courtesy of BMW OF NORTH AMERICA, INC.
