Installing ornamental grille on front side left and right bumper cover

Installing the ornamental grille in the side bumper cover

Check

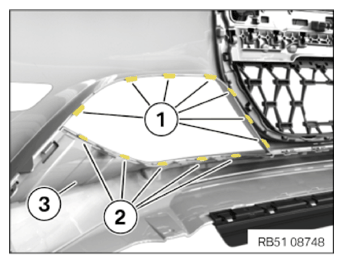

• Check detents (1)  on the bumper cover for damage.
• Check the detents (2)  on the bumper cover lower section (3)  for damage.

Courtesy of BMW OF NORTH AMERICA, INC.

Result

» Detents (1)  are damaged.

Measure

• Replace the bumper cover.

Result

» Detents (2)  are damaged.

Measure

• Replace the bumper cover lower section (3)  .

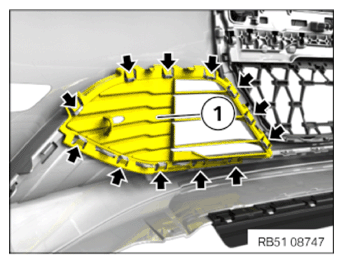

• Position the ornamental grille (1)  and clip into the detents (arrows).

Courtesy of BMW OF NORTH AMERICA, INC.
