52 26 Rear Seat, Through-Loading
>>
52 26 388 Removing and installing/replacing rear middle head restraint (4' Series Gran Coupe sedan models)
>>
Removing the rear middle head restraint
Removing the rear middle head restraint

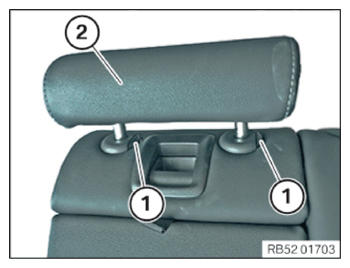

Press the locks (1) and remove the head restraint (2) towards the top.
Courtesy of BMW OF NORTH AMERICA, INC.
