Removing the front head restraint (optional equipment 4NA air collar)

Preliminary work

• Refer to REMOVING REAR PANEL ON THE FRONT SEAT BACKREST .

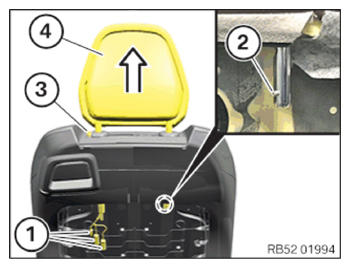

• Unlock plug connections (1) and disconnect.
• Release the set screw (2).
• Press the lock (3) and at the same time carefully pull the head restraint (4) in the arrow direction up to the end position.

  Courtesy of BMW OF NORTH AMERICA, INC.

  NOTE: RISK OF DAMAGE
  Careless handling of tools and sharp-edged components.
  Scratches, surface damage.

  • Protect working area.
  • Handle tools and components carefully.

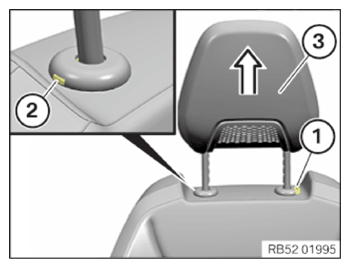

• Press and hold the lock (1) and covered lock (2) simultaneously and unlock the head restraint (3) in the arrow direction.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Carefully remove the head restraint (1).
• Make sure that the cables and connectors of the head restraint are removed without any damage in the marked area (2).

Courtesy of BMW OF NORTH AMERICA, INC.
