Installing the front head restraint (optional equipment 4NA air collar)

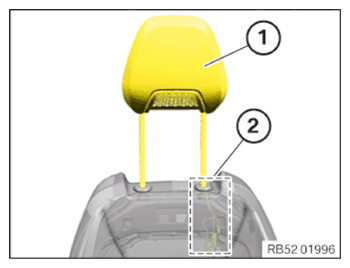

• Position the head restraint (1) as shown.
• Position the cable and connector of the head restraint in the marked area (2) and feed it into the rear seat backrest without damaging.

  Courtesy of BMW OF NORTH AMERICA, INC.

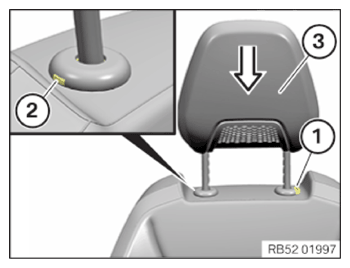

• Press and hold the lock (1) and covered lock (2) simultaneously and engage the head restraint (3) in the arrow direction.

  Courtesy of BMW OF NORTH AMERICA, INC.

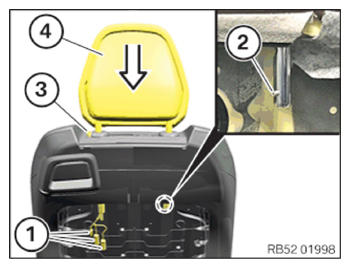

• Carefully press the lock (3) and at the same time move the head restraint (4) up to the end position in the arrow direction.
• Tighten the set screw (2).
  TIGHTENING TORQUE SPECIFICATION



  Set screw to head restraint rod
  Set screw M4x16	Tightening torque	1.1 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

• Connect all connectors (1) and lock.

Follow-up work

• Refer to INSTALLING THE REAR PANEL ON THE FRONT SEAT BACKREST .
