Remounting the LED turn signal

Removing the LED turn signal

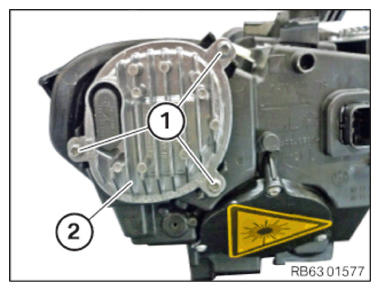

• Loosen screws (1).
• Feed out the LED turn signal (2).

  Courtesy of BMW OF NORTH AMERICA, INC.

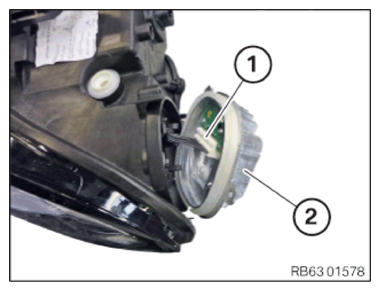

• Unlock plug connection (1) and disconnect.
• Remove the LED turn signal (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Installing the LED turn signal

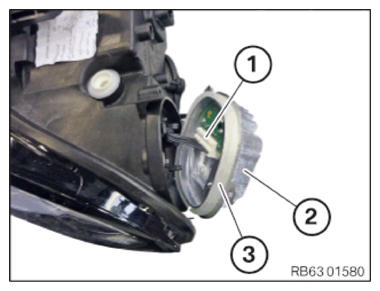

• Check seal (3) for damage and replace if necessary.
• Position the LED turn signal (2).
• Connect connectors (1) and lock.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Feed in and correctly position the LED turn signal (2).
• Tighten down screws (1).

Courtesy of BMW OF NORTH AMERICA, INC.
