Installing the LED module for the turn signal lamps

NOTE: Schematic diagram is for example purposes. Some parts may differ in certain details.

• Check the seal (1) on the LED module (2) for damage and replace as needed.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Connect the connector (1) to the LED module (2) and lock it.

  Courtesy of BMW OF NORTH AMERICA, INC.

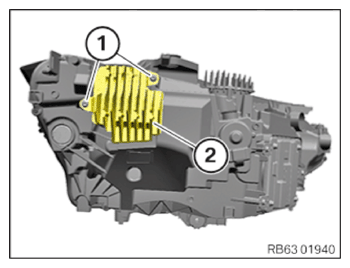

• Position the LED module (2) on the headlamp.
• Tighten down screws (1).

TIGHTENING TORQUE SPECIFICATION

LED turn signal on headlight
Screw	tightening torque	1.5 Nm
