Adjusting fog lights
NOTE:
TECHNICAL INFORMATION
Notes on the headlight adjustment are a fundamental requirement for these repair instructions and must be complied with at all times.
For additional information see: 63 10... TEST PREREQUISITE FOR THE HEADLIGHT ADJUSTMENT NOTES ON HEADLIGHT ADJUSTMENT
Notes on the headlight adjustment are a fundamental requirement for these repair instructions and must be complied with at all times.
For additional information see: 63 10... TEST PREREQUISITE FOR THE HEADLIGHT ADJUSTMENT NOTES ON HEADLIGHT ADJUSTMENT
NOTE:
Description is for left component only. Procedure on the right side is identical.

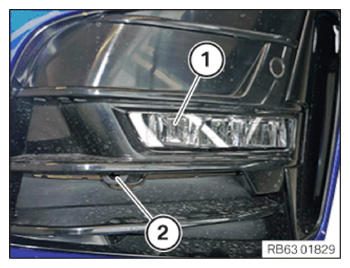

- Adjust the fog light (1) on the adjustment screw (2).
