Storing the data matrix code for the backup of the headlight data

Precondition

The LED headlight was replaced.

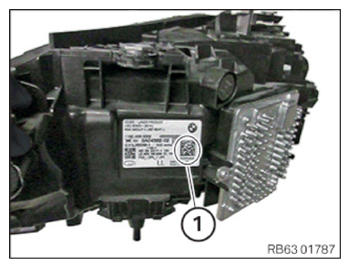

• Data matrix code (1)  (it is located on the headlight) must be scanned or photographed before the installation  of the new headlight.

  This data content is required to process the service test module, the "data matrix module".

Courtesy of BMW OF NORTH AMERICA, INC.
