Remove headlight
NOTE:
RISK OF DAMAGE
Mechanical effects.
Paint damage.
Mechanical effects.
Paint damage.
- Mask those working areas at risk with yellow plastic adhesive tape.
- Remove and install heavy or bulky components with the aid of another person/other persons.
NOTE:
TECHNICAL INFORMATION
In order to guarantee the quality of the Driver Assistance functions in vehicles with concealed radar sensors, please read and comply with the following notes:
No labels may be attached in the radiation areas of the radar sensors.
The component may be painted if no radar sensors have been installed.
The following features can be used to identify whether radar sensors are installed on the vehicle:
Radar sensors are installed at the rear if the triangular warning light is located on the exterior mirror (in the mirror glass or on the mirror frame).
Radar sensors are installed at the front and rear if the triangular warning light is located on the exterior mirror (in the mirror glass or on the mirror frame) in conjunction with the optional equipment S5ATA or S5AUA.
In order to guarantee the quality of the Driver Assistance functions in vehicles with concealed radar sensors, please read and comply with the following notes:
No labels may be attached in the radiation areas of the radar sensors.
The component may be painted if no radar sensors have been installed.
The following features can be used to identify whether radar sensors are installed on the vehicle:
Radar sensors are installed at the rear if the triangular warning light is located on the exterior mirror (in the mirror glass or on the mirror frame).
Radar sensors are installed at the front and rear if the triangular warning light is located on the exterior mirror (in the mirror glass or on the mirror frame) in conjunction with the optional equipment S5ATA or S5AUA.
Preliminary work
- Refer to REMOVING SEAL FOR FRONT HOOD .
- Refer to REMOVING THE COVER FOR THE CENTER ENGINE COMPARTMENT .
- Refer to PARTIALLY RELEASING THE FRONT LEFT AND RIGHT WHEEL ARCH TRIM PANELS .
- Refer to PARTIALLY REMOVING TEMPERATURE SENSOR .
- Refer to REMOVING FRONT BUMPER COVER .

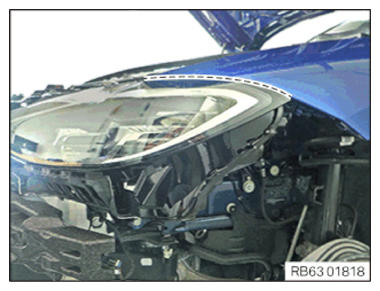

- Mask off the body in the marked area with adhesive tape.
- Unlock plug connection (1) and disconnect.

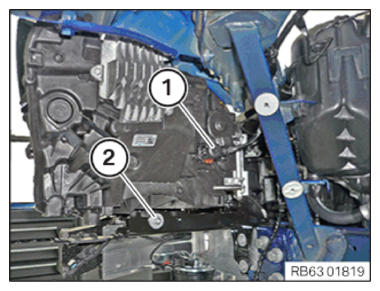

- Loosen screw (2).

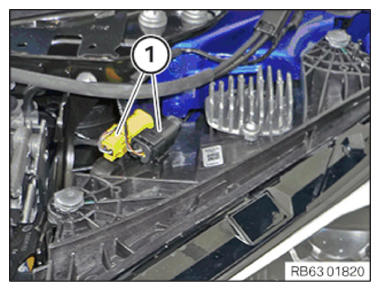

- Release the connector bracket (1) from the headlight.

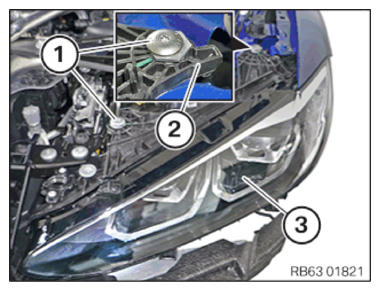

- Loosen screws (1).
- Lift the headlight (3), release it with detent (2) and guide it out to the front.
