Remount LED module for daytime running lights

Removing the LED module for the daytime running lights

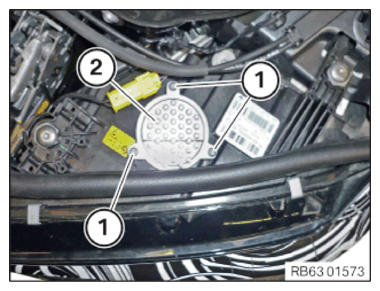

• Loosen screws (1).
• Feed out the LED module for the daytime running lights (2) and slightly lift.

  Courtesy of BMW OF NORTH AMERICA, INC.

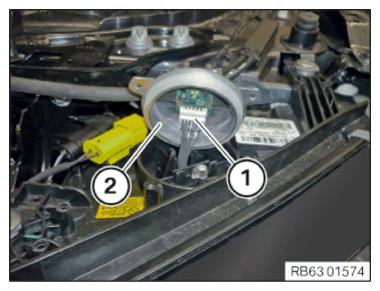

• Unlock plug connection (1) and disconnect.
• Remove the LED module for the daytime running lights (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Installing LED module for daytime driving lights

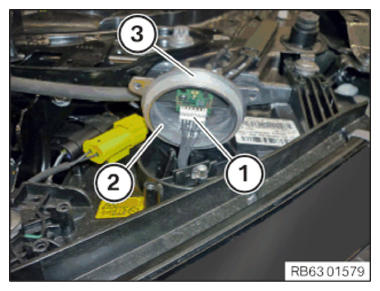

• Check seal (3) for damage and replace if necessary.
• Position the LED module for daytime driving lights (2).
• Connect connectors (1) and lock.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Feed in the LED module for daytime driving lights (2) and correctly position it.
• Tighten down screws (1).

Courtesy of BMW OF NORTH AMERICA, INC.
