Installing the storage net

NOTE: Schematic diagram is for example purposes. Some parts may differ in certain details.

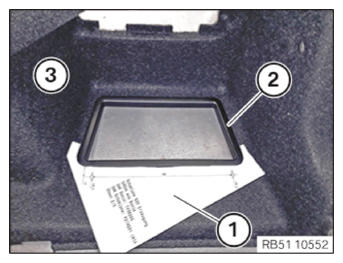

Measure the reference dimension on the template (1) and cut it out as shown.
As shown, position template (1) on the frame (2) and fasten using adhesive tape.
Drill holes all the way through at the marks using the ø 6.5 mm drill bit from the special tools 5 A63 022 .
Remove the template (1).

Courtesy of BMW OF NORTH AMERICA, INC.
Screw the holder (1) into the bores.

Courtesy of BMW OF NORTH AMERICA, INC.

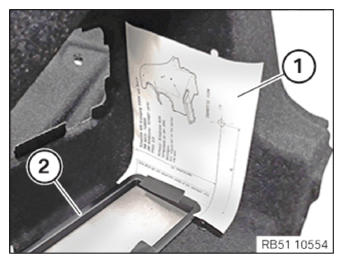

Measure the reference dimension on the template (1) and cut it out as shown.
As shown, position template (1) on the frame (2) and fasten using adhesive tape.
Drill holes all the way through at the marks using the ø 10 mm drill bit from the special tools 5 A63 022 .
Remove the template (1).

Courtesy of BMW OF NORTH AMERICA, INC.

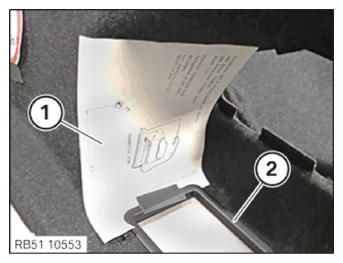

Measure the reference dimension on the template (1) and cut it out as shown.
As shown, position template (1) on the frame (2) and fasten using adhesive tape.
Drill holes all the way through at the marks using the ø 10 mm drill bit from the special tools 5 A63 022 .
Remove the template (1).

Courtesy of BMW OF NORTH AMERICA, INC.
Insert the holder (1) into the bores and lock in place correctly.

Courtesy of BMW OF NORTH AMERICA, INC.
Insert storage net (1) in the holder at the top as pictured and snap it in correctly at the holders at the bottom.

Courtesy of BMW OF NORTH AMERICA, INC.
