Lower front axle support
WARNING:
Heavy component falling down or tipping
.
Danger! Immobilization period-threatening injuries!
Danger! Immobilization period-threatening injuries!
- Before lowering or removing the front axle: Secure the engine in the installation position.
- For additional information see: 11 00 670 SECURING ENGINE IN INSTALLATION POSITION .
Remove left and right crash lever
NOTE:
TECHNICAL INFORMATION
Different variants may be installed depending on the vehicle equipment.
Different variants may be installed depending on the vehicle equipment.
NOTE:
The following step (s) must be performed if the listed component (s) is/are installed.
NOTE:
Perform the steps on the right and left side.

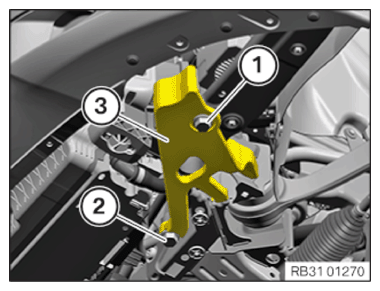

- Version A:
Release screws (1) and (2) .
Remove the crash lever (3) .

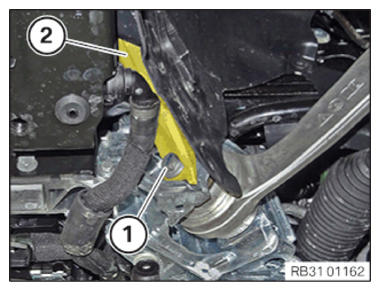

- Version B:
Release the screw (1) .
Feed out the crash lever (2) and remove.
NOTE:
Perform the steps on the left and right side.
- Loosen screws (1)
.
- Position the universal jack 2 219 012
with the special tools 0 495 819 (31 5 253)
and 0 495 821 (31 5 255)
on the front axle support.
The center of gravity of the front axle must be placed centered over the universal jack 2 219 012 !
- Support the front axle support with the universal jack 2 219 012
.
- Loosen screws (1)
and (2)
.
- Lower the front subframe (1)
with the universal jack by dimension (A)
.
Dimension (A) = maximum 15 cm
