Disconnecting the negative battery cable (starter unit battery)
NOTE:
RISK OF DAMAGE
Damage to battery terminal, the safety battery terminal or the intelligent battery sensor (IBS) .
Damaged battery terminals can lead to malfunctions or vehicle electrical system faults .
Damage to battery terminal, the safety battery terminal or the intelligent battery sensor (IBS) .
Damaged battery terminals can lead to malfunctions or vehicle electrical system faults .
- Detach battery terminal from battery pole by carefully shifting to and fro. Do not pry off using a tool.

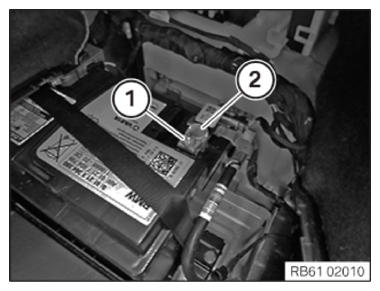

- Slacken the nut (1) on the negative battery terminal.
- Detach the negative battery terminal (2) from the negative battery terminal.
- Put the battery ground lead to one side and secure it.
