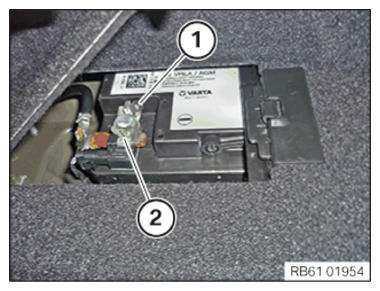

Connecting negative battery cable of the system battery

• Position the negative battery cable of the system battery (2)  on the negative battery terminal as shown.
• Tighten nut (1)  .

TIGHTENING TORQUE SPECIFICATION

Negative battery terminal
Nut	tightening torque	5 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

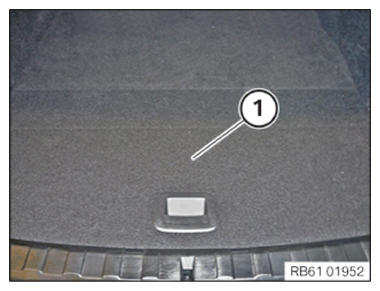

• Close the cover (1)  .

  Courtesy of BMW OF NORTH AMERICA, INC.

• Close the luggage compartment floor covering (1)  .

Courtesy of BMW OF NORTH AMERICA, INC.
