Removing the seal of the left and right side panel
Removing the side panel seal
NOTE:
Description is for left component only. Procedure on the right side is identical.

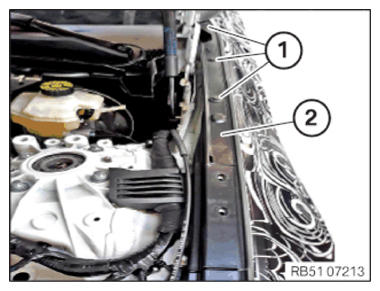

- Loosen the expanding rivet (1).
- Guide out and remove the seal (2).
 Courtesy of BMW OF NORTH AMERICA, INC.
|
