Removing the front section of the front wheel arch cover on the left and right
NOTE:
Perform the steps on the left and right side.
Remove the front section of the front wheel arch cover
NOTE:

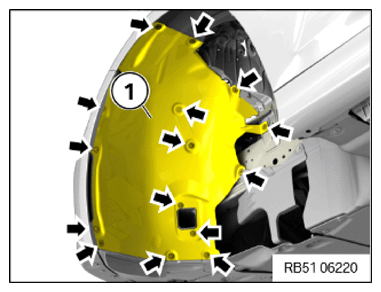

To provide a better overview: Schematic diagram with partially hidden components.
- Remove screws (arrows).
- Remove the front section of the front wheel arch cover (1).
 Courtesy of BMW OF NORTH AMERICA, INC.
|
