Installing the seal on left and right side panel
Installing the side panel seal
NOTE:
Description is for left component only. Procedure on the right side is identical.

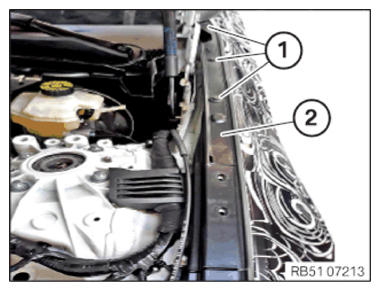

- Guide the seal (2) in and install it.
- Mount the expanding rivets (1).
 Courtesy of BMW OF NORTH AMERICA, INC.
|
