Installing center bulkhead lower part
Installing center bulkhead lower part

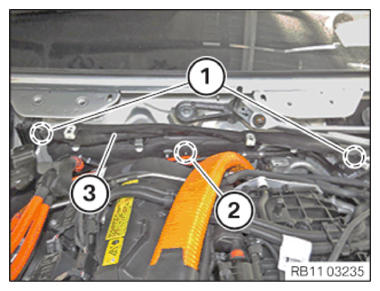

Position the center cowl lower part (3).
Tighten the nut (2) and the bolts (1).
TIGHTENING TORQUE SPECIFICATION
Bulkhead lower part on body
screw
Tightening torque
2.6 Nm
Plastic nut
Tightening torque
2.6 Nm
Courtesy of BMW OF NORTH AMERICA, INC.
Clip the vacuum line (1) onto the clips (2).
Courtesy of BMW OF NORTH AMERICA, INC.
Courtesy of BMW OF NORTH AMERICA, INC.
