If installed: Installing the cover in the engine compartment at top left and right (partially removed)
NOTE:
Description is for left component only. Procedure on the right side is identical.

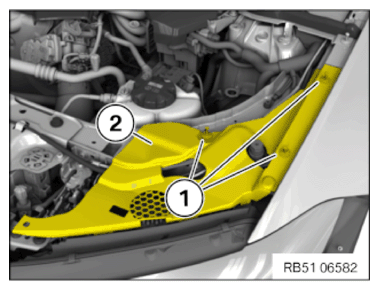

Installing the cover in the engine compartment at the top (partially removed)
- Install the cover (2) in the engine compartment at the top.
- Secure expanding rivet (1).
