Remove left and right output shaft

Remove output shaft

Remove output shaft

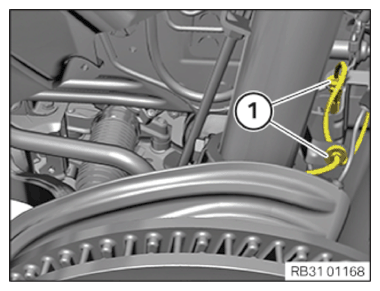

• Release the cable for the wheel speed sensor from the holders (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

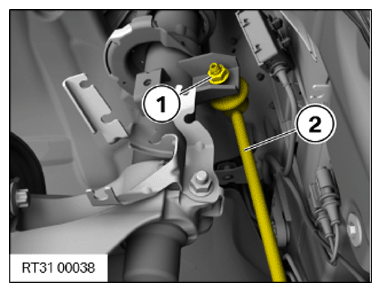

• Release the nut (1).
  NOTE: Counter-hold at the Torx socket.
• Detach the anti-roll bar link (2) from the spring strut.

  Courtesy of BMW OF NORTH AMERICA, INC.

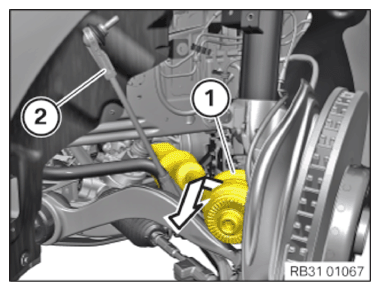

• Turn swivel bearing outwards.
• Set aside the anti-roll bar link (2).
• Guide out the output shaft (1) from the swivel bearing.

  Courtesy of BMW OF NORTH AMERICA, INC.

  NOTE: TECHNICAL INFORMATION
  Secure component against falling.

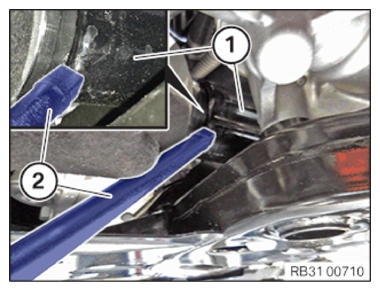

• Position the aluminum drift (2) on the output shaft (1).
• Knock out the output shaft (1) from the front axle transmission with an aluminum mandrel (2).

  Courtesy of BMW OF NORTH AMERICA, INC.

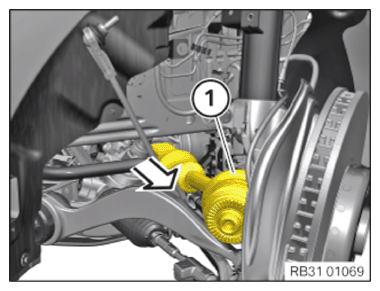

• Remove the output shaft (1) in the direction of the arrow.

  Courtesy of BMW OF NORTH AMERICA, INC.

Remove output shaft

• Release the cable for the wheel speed sensor from the holders (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

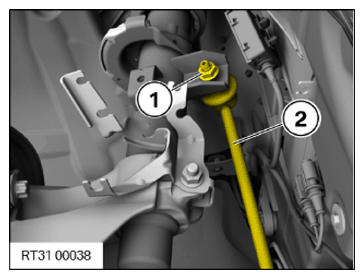

  • Release the nut (1).
    NOTE: Counter-hold at the Torx socket.
  • Detach the anti-roll bar link (2) from the spring strut.

    Courtesy of BMW OF NORTH AMERICA, INC.

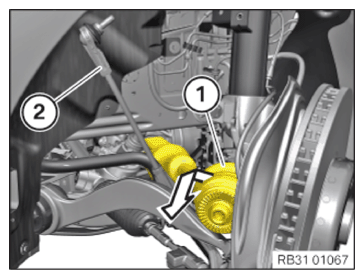

  • Turn swivel bearing outwards.
  • Set aside the anti-roll bar link (2).
  • Guide out the output shaft (1) from the swivel bearing.

    Courtesy of BMW OF NORTH AMERICA, INC.

    NOTE: TECHNICAL INFORMATION
    Secure component against falling.
  • Position the aluminum drift (2) on the output shaft (1).
  • Knock out the output shaft (1) from the front axle transmission with an aluminum mandrel (2).

    Courtesy of BMW OF NORTH AMERICA, INC.

  • Remove the output shaft (1) in the direction of the arrow.

    Courtesy of BMW OF NORTH AMERICA, INC.
