Install the left-hand and right-hand crash lever

NOTE: TECHNICAL INFORMATION
Different variants may be installed depending on the vehicle equipment.

NOTE: The following step(s) must be performed if the listed component(s) is/are installed.

NOTE: Perform the steps on the right and left side.

Version A:

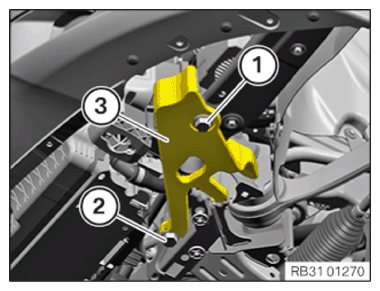

Position the crash lever (3) on the front subframe.

Tighten screws (1) and (2).

TIGHTENING TORQUE SPECIFICATION

Crash lever on frame/adapter of front subframe
M14	Tightening torque 100 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

Version B:

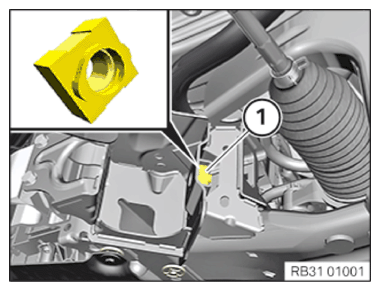

Replace the cage nut (1).

Parts: Cage nut

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: TECHNICAL INFORMATION
Tighten the screw connection in the NORMAL POSITION .

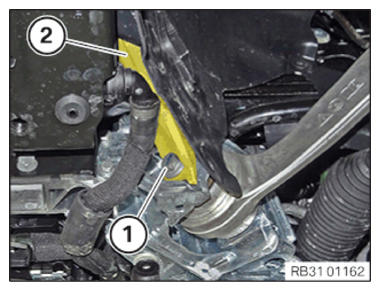

Position the tension strut and crash lever (2) on the front subframe.
Replace the screw (1).
Parts: Screw
Feed in screw (1) and tighten hand-tight.
The screw connection is tightened later in NORMAL POSITION .

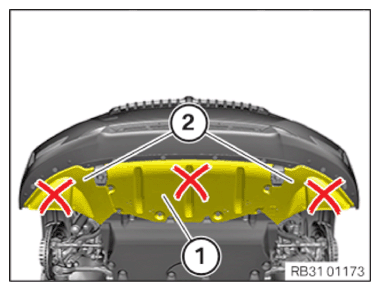

On version B: Install the front underbody protection (1) and the lower wheel arch covers (2) only after tightening the threaded connection of the tension strut at the front subframe.

Courtesy of BMW OF NORTH AMERICA, INC.

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: TECHNICAL INFORMATION
For additional information see: Tighten the screw connection of the tension strut on the left and right.

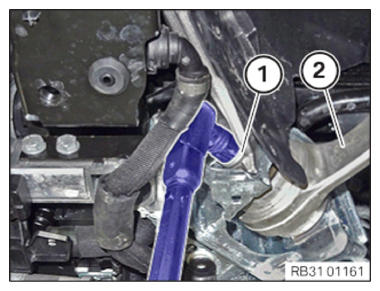

Tighten the screw (1) of the tension strut (2) on the front subframe in NORMAL POSITION only following the follow-up work .

Courtesy of BMW OF NORTH AMERICA, INC.
