Install the cylinder head cover acoustic cover
Install the cylinder head cover acoustic cover

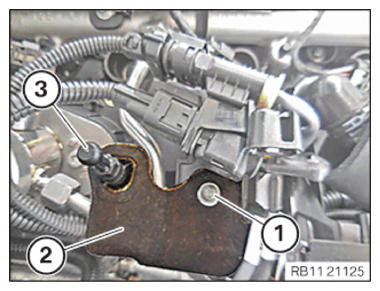

Feed in and position acoustic cover (2) at ball hub (3).
Tighten down screw (1).
TIGHTENING TORQUE SPECIFICATION
Acoustic cover (side) to cylinder head cover
TS6 x 20
6 Nm
Courtesy of BMW OF NORTH AMERICA, INC.

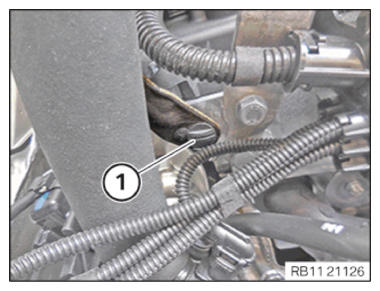

Secure the clip (1).
Courtesy of BMW OF NORTH AMERICA, INC.
Courtesy of BMW OF NORTH AMERICA, INC.
