Fasten acoustic cover on the oil pan

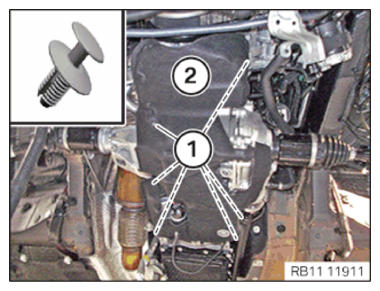

NOTE: Schematic diagram is for example purposes. Some parts may differ in certain details.

• Position the acoustic cover (2) on the oil sump.
• Release all the existing expanding rivets (1).

Courtesy of BMW OF NORTH AMERICA, INC.
