Detaching the acoustic cover from the oil sump

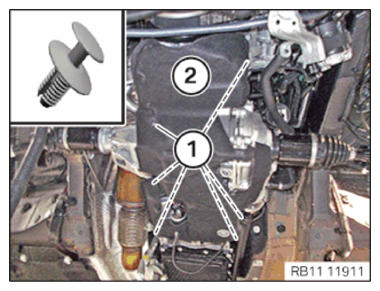

NOTE: Schematic diagram is for example purposes. Some parts may differ in certain details.

Release all existing expanding rivets (1).
Detach acoustic cover (2) from the oil pan.
Do not remove acoustic cover (2).

Courtesy of BMW OF NORTH AMERICA, INC.
