Install control unit bracket

• Make sure the control unit bracket (1)  at bottom is fed into the mount (2)  correctly.

  Courtesy of BMW OF NORTH AMERICA, INC.

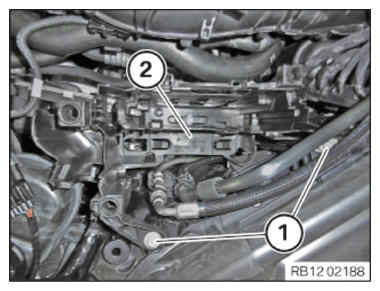

• Feed in the control unit bracket (2)  and install.
• Tighten down screws (1)  .

Courtesy of BMW OF NORTH AMERICA, INC.

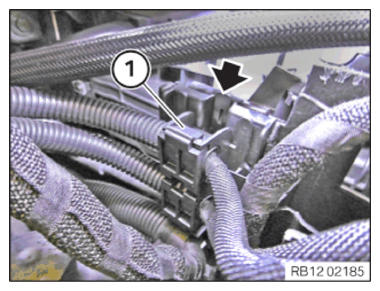

• Feed in and install the cable clip (1)  .

  The lock (arrow) must audibly engage.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Secure clamps (1)  .

  Courtesy of BMW OF NORTH AMERICA, INC.

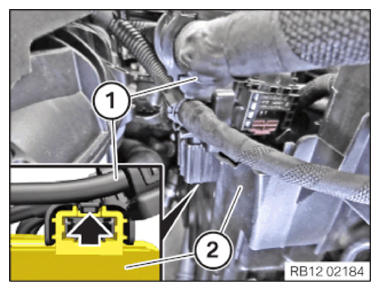

• Attach the cable bracket (1)  to the control unit bracket (2)  and lock.

  The lock (arrow) must audibly engage.

  Courtesy of BMW OF NORTH AMERICA, INC.

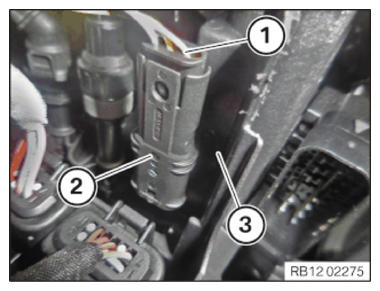

• Connect and lock the connector (2)  on the control unit bracket (3)  .

  The connector (2)  must engage audibly.

• Connect connectors (1)  and lock.

  The connector (1)  must engage audibly.

  Courtesy of BMW OF NORTH AMERICA, INC.

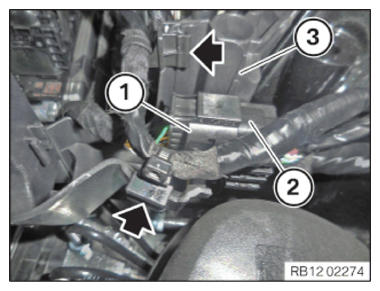

• Attach the connector (2)  to the control unit bracket (3)  and lock.

  The connector (2)  must engage audibly.

• Connect connectors (1)  and lock.

  The connector (1)  must engage audibly.

• Secure the clamps (arrows).

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALL THE INTEGRATED POWER SUPPLY MODULE (PDM) .
• Refer to INSTALLING THE DME CONTROL UNIT .
• Refer to INSTALLING ACOUSTIC COVER .
• Refer to CONNECTING NEGATIVE BATTERY CABLE OF THE SYSTEM BATTERY .
