11 36 Variable Camshaft Timing Control
>>
11 36 125 Removing and installing/replacing intake VANOS central valve (330e PHEV)
>>
Releasing VANOS central valve of the exhaust camshaft adjuster
Releasing VANOS central valve of the exhaust camshaft adjuster
To release the VANOS central valve
(1)
, use reversible
ratchet (2) from special tool
0 496 855
with special tool
2 450 487
.
Courtesy of BMW OF NORTH AMERICA, INC.
NOTE:
The figure shows the rear of the engine.

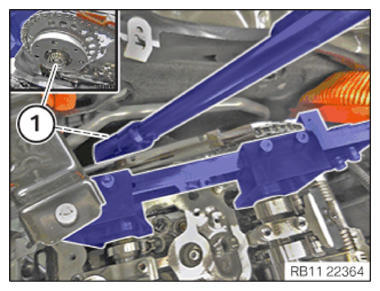

Release the VANOS central valve
(1)
of the exhaust camshaft adjuster.
Courtesy of BMW OF NORTH AMERICA, INC.
