Checking engine oil pressure
WARNING:
Hot fluids
.
Risk of scalding!
Risk of scalding!
- Conduct all work in the vehicle wearing appropriate personal protective equipment only.
WARNING:
Hot surfaces
.
Risk of burning!
Risk of burning!
- Perform all work only on components that have cooled down.
NOTE:
TECHNICAL INFORMATION
Collect and dispose of emerging fluids. Observe country-specific waste disposal regulations.
Collect and dispose of emerging fluids. Observe country-specific waste disposal regulations.
Preliminary work
- Refer to CHECKING ENGINE OIL LEVEL .
- Refer to REMOVING THE ACOUSTIC COVER .
- Refer to REMOVING THE OIL FILTER ELEMENT .
NOTE:
RISK OF DAMAGE
Contaminant or foreign body .
Contamination can result in malfunctions, loss of function or leaks .
Contaminant or foreign body .
Contamination can result in malfunctions, loss of function or leaks .
- Adhere to the utmost cleanliness.
- Protect components from contamination e.g. by covering.
- Close off line connections with seal plugs.
- Have the special tool ready.

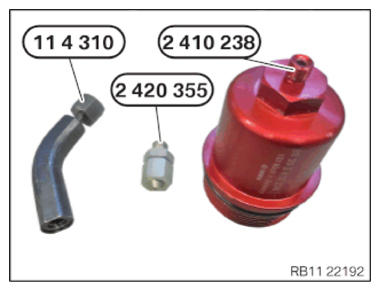

Number Description 11 4 310 Adapter 2 420 355 . Adapter 2 410 238 . Measuring adapter - Feed out and remove the oil filter element (1)
in the arrow direction
from the oil filter cover (2)
.

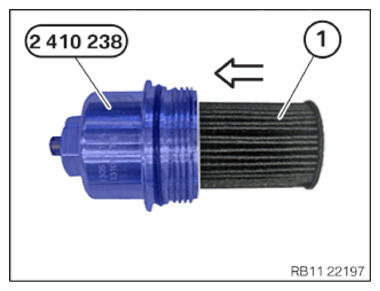

- Insert the oil filter element (1)
in arrow direction
in the special tool 2 410 238
and install it.
The oil filter element (1) must engage audibly.

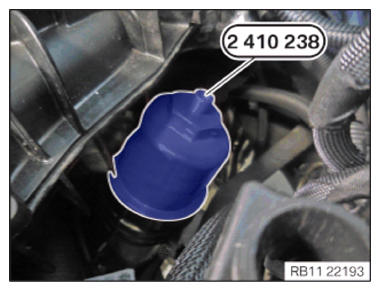

- Install and tighten the special tool 2 410 238
.TIGHTENING TORQUE SPECIFICATION

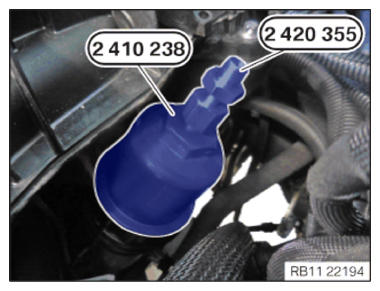

Special tool to measure the pressure on the oil filter module O-ring lightly oiled. Tightening torque 25 Nm - Install and tighten special tool 2 420 355
at the special tool 2 410 238
.

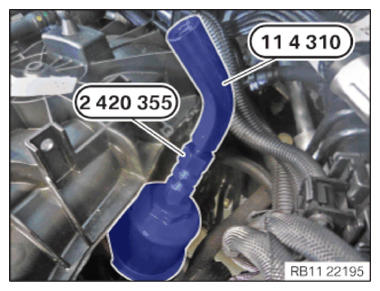

- Install and tighten special tool 0 496 623 (11 4 310) at the special tool 2 420 355 .
- Lightly oil the sealing ring at the 100-bar sensor.
Standard tools: 100-bar sensor
100-bar sensor
100-bar sensor
81 31 2 357 801
- Screw the 100-bar sensor hand-tight into special tool 0 496 623 (11 4 310) .
- Use the connecting cable to connect the 100-bar sensor with the integrated Measurement Interface Box (IMIB).
Standard tools: IMIBR2
IMIBR2
IMIBR2
81 38 2 295 937
- Check engine oil pressure.
- Observe diagnosis instructions.
- Remove special tools 0 496 623 (11 4 310) , 2 420 355 and 2 410 238 .

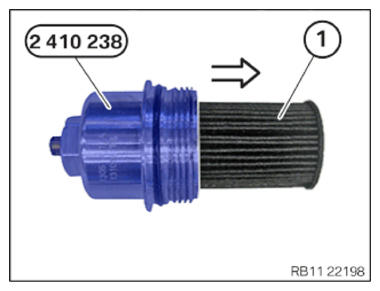

- Release the oil filter element (1)
in arrow direction
from the special tool 2 410 238
.
- Replace sealing ring (1)
.
Parts: Sealing ring

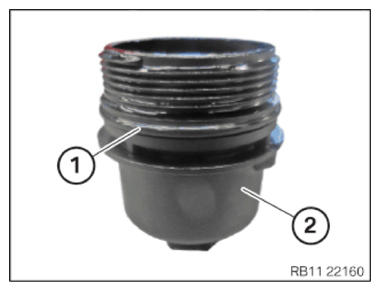

- Replace the sealing ring (1)
at the oil filter cover (2)
.

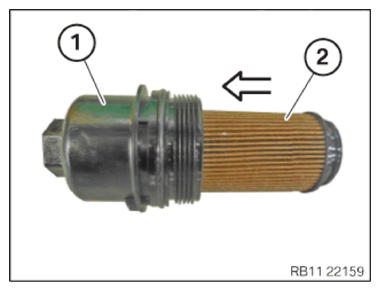

- Feed in and install the oil filter element (2)
in the arrow direction
on the oil filter cover (1)
.
The oil filter element (2) must engage audibly.
Follow-up work
- Refer to INSTALLING THE OIL FILTER ELEMENT .
- Refer to INSTALLING ACOUSTIC COVER .
- Refer to CHECKING ENGINE OIL LEVEL .
