Installing the acoustic cover for the engine, front

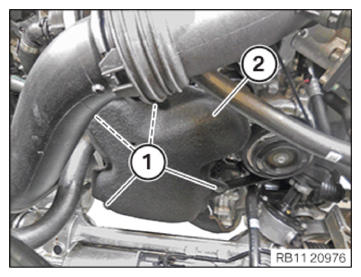

• Check the acoustic cover (2)  for damage in the marked areas (1)  and replace it if necessary.

  Courtesy of BMW OF NORTH AMERICA, INC.

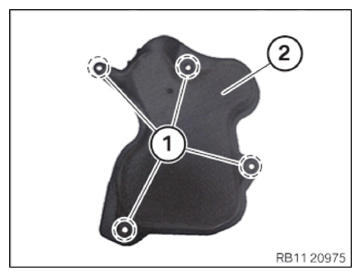

• Thread in and position the acoustic cover (2)  .
• Mount all the expanding rivets (1)  .

  Courtesy of BMW OF NORTH AMERICA, INC.

• Feed in the wiring harness section (3)  and position.
• Secure clamps (2)  .
• Connect connectors (1)  and lock.

  The connector (1)  must engage audibly.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Secure clamps (1)  .

  Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING THE CLEAN AIR PIPE WITH THE RESONATOR .
• Refer to INSTALLING ACOUSTIC COVER .
