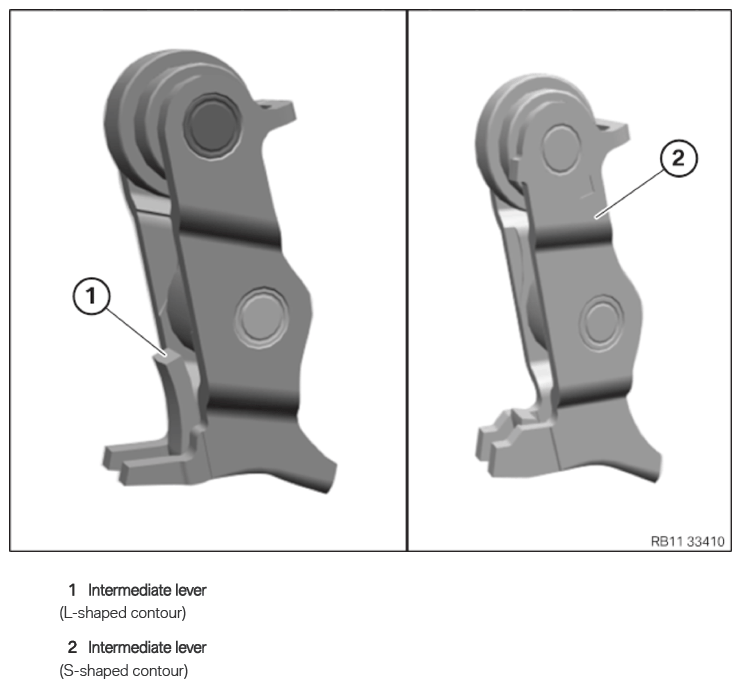

Removing all intermediate levers
Intermediate lever
NOTE:
TECHNICAL INFORMATION
When replacing one or more intermediate levers:
When removing the intermediate lever, it is imperative to note the part number of the intermediate lever.
A mixed installation of intermediate levers is only permitted in combination with the appropriate torsion spring .
For further information on possible combinations, see the applicable BMW parts catalogue.
When replacing one or more intermediate levers:
When removing the intermediate lever, it is imperative to note the part number of the intermediate lever.
A mixed installation of intermediate levers is only permitted in combination with the appropriate torsion spring .
For further information on possible combinations, see the applicable BMW parts catalogue.
NOTE:
The description is for one component only. The procedure is identical for all further components.
- Remove the intermediate lever (1)
and arrange it in the special tool 0 495 105 (11 4 480)
in order.
