Install door trim panel

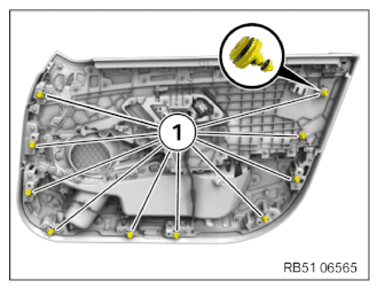

Replace the clips (1) .
Parts: Clips

Courtesy of BMW OF NORTH AMERICA, INC.
Press the inner door handle in the Closed direction.
Insert the Bowden cable for the inner door opener (2) and clip in at the lock (1) .
Connect connectors (3) and lock.

Courtesy of BMW OF NORTH AMERICA, INC.

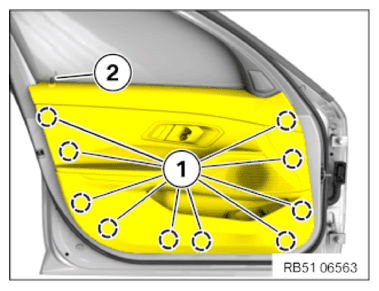

Insert the door trim panel at the top via the operating rod (2) into the door well cover at the front on the inside.
Clip in door trim panel with the clips (1) .

Courtesy of BMW OF NORTH AMERICA, INC.

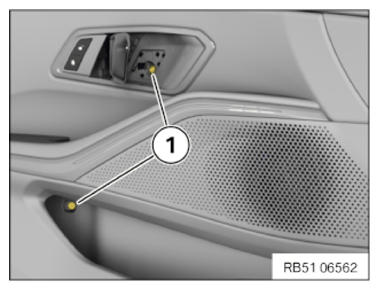

Tighten down screws (1) .

TIGHTENING TORQUE SPECIFICATION

Door trim panel to door
Screw TS5x20	Tightening torque	2.6 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

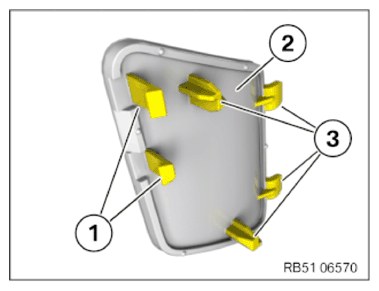

Check the locks (1) for damage, replace the trim (2) if necessary.
Check the guides (3) for damage, replace the trim (2) if necessary.

Courtesy of BMW OF NORTH AMERICA, INC.

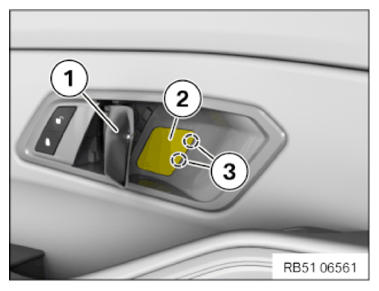

Pull the door opener (1) .
Fit the trim (2) and clip in with the detents (3) .

Courtesy of BMW OF NORTH AMERICA, INC.
