Remove center radiator ornamental grille
Preliminary work
- Refer to REMOVING SEAL FOR FRONT HOOD .
- Refer to REMOVING THE COVER FOR THE CENTER ENGINE COMPARTMENT .

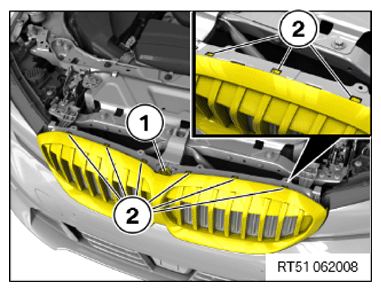

- Loosen screw (1) .
- Release center front radiator grill from the detents (2) .
- Release center front radiator grill from remaining detents to front and remove.
- Unlock and disconnect the plug connections according to the equipment.
