Removing the center cowl upper part
NOTE:
TECHNICAL INFORMATION
Driving without the strut brace/front-end strut or tension strut is not permitted.
Driving without the strut brace/front-end strut or tension strut is not permitted.
NOTE:
The following step(s) must be performed if the listed component(s) is/are installed.
- Remove the tension strut on the shock tower.

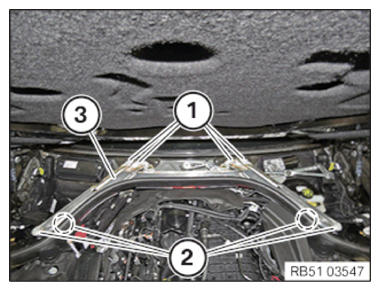

- Version A:
Loosen screws (1) and (2).
Remove tension strut (3) at the shock tower upwards.
NOTE: The following step(s) must be performed if the listed component(s) is/are installed. - Remove the tension strut on the shock tower.

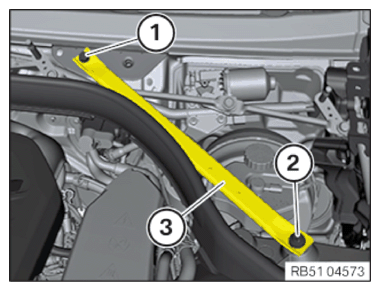

- Version B:
Loosen screws (1) and (2).
Remove tension strut (3) at the shock tower upwards.

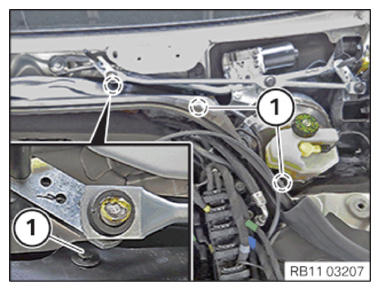

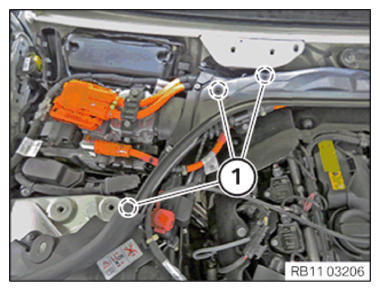

- Release the screws at the marked points.

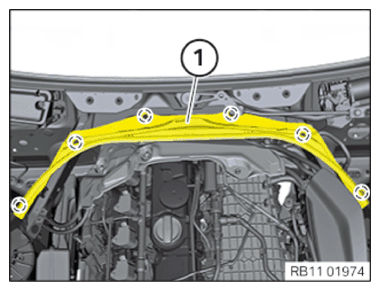

- Remove the center cowl upper part (1).
