Removing the center bulkhead lower part
Removing the center bulkhead lower part

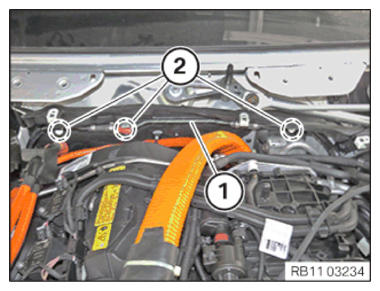

Unclip vacuum line (1) from the clamps (2).
Courtesy of BMW OF NORTH AMERICA, INC.

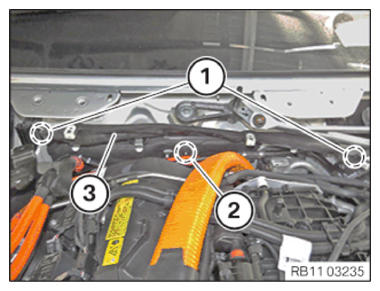

Loosen screws (1).
Loosen nut (2).
Remove the center cowl lower part (3).
Courtesy of BMW OF NORTH AMERICA, INC.
Courtesy of BMW OF NORTH AMERICA, INC.
