Disconnecting all battery ground leads
Prerequisite
Ignition is switched off.
WARNING:
Deactivate the 12-V electrical system
.
Risk of short circuits! Risk of fire!
Risk of short circuits! Risk of fire!
- Make sure that there is no battery charger connected to the jump start terminal in the engine compartment.
- For vehicles with additional electrical systems (48 V electrical system, high-voltage vehicle electrical system), this absolutely must be deactivated before the vehicle battery is disconnected.
NOTE:
RISK OF DAMAGE
Damage to battery terminal, the safety battery terminal or the intelligent battery sensor (IBS) .
Damaged battery terminals can lead to malfunctions or vehicle electrical system faults .
Damage to battery terminal, the safety battery terminal or the intelligent battery sensor (IBS) .
Damaged battery terminals can lead to malfunctions or vehicle electrical system faults .
- Detach battery terminal from battery pole by carefully shifting to and fro. Do not pry off using a tool.

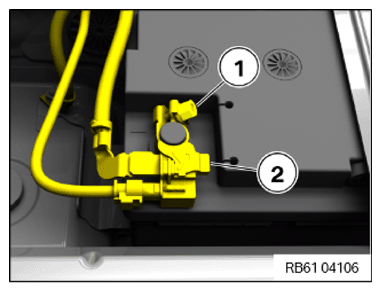

- Loosen nut (1) .
- Pull off the negative battery cable of the system battery (2) from the negative battery terminal, set aside and secure.
