Remove the holder of the positive battery cable

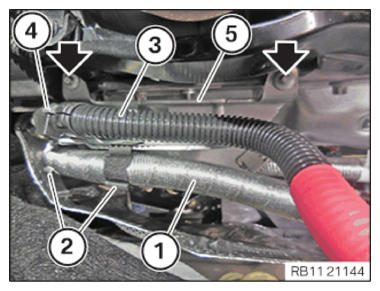

- Version A (without mild hybrid technology)
Remove positive battery cable (1) from clamps (2).
Release the positive battery cable (3) from the clamp (4).
Remove screws (arrows).
Feed out the bracket (5) of the positive battery cable and set it aside.

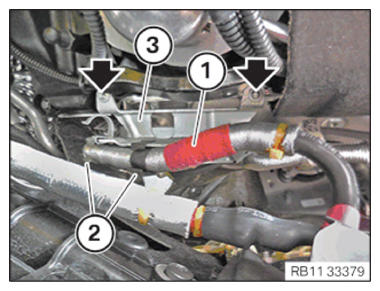

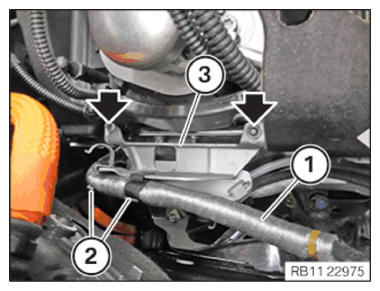

- Version B (with mild hybrid technology)
Remove positive battery cable (1) from clamps (2).
Remove screws (arrows).
Feed out the bracket (3) of the positive battery cable and set it aside.

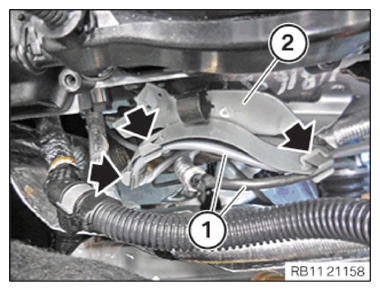

- Release the cable (1) from the clamps (arrows).
- Feed out and remove the bracket (2) of the positive battery cable.
