Remove the heat shield at the cylinder head

WARNING: Hot surfaces .
Risk of burning!

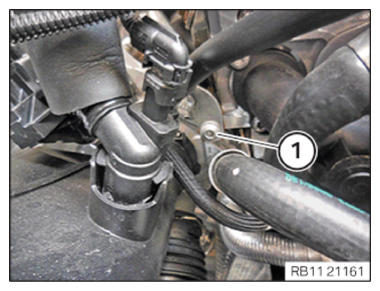

Version without Real Driving Emissions 2 (-SA1DZ):
Loosen screw (1).

Courtesy of BMW OF NORTH AMERICA, INC.

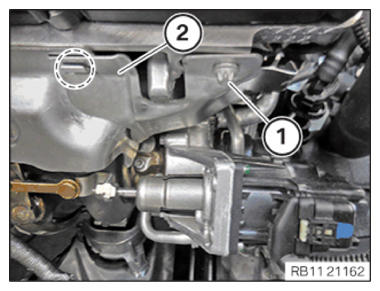

Version without Real Driving Emissions 2 (-SA1 DZ):
Loosen screw (1).

Guide out the heat shield (2) out of the marked area and remove.

Courtesy of BMW OF NORTH AMERICA, INC.

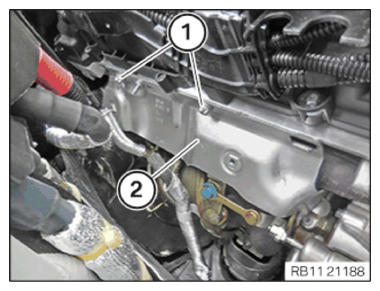

Loosen screws (1).
Feed out and remove the heat shield (2).

Courtesy of BMW OF NORTH AMERICA, INC.
