Install coolant line between the coolant pump and cylinder head
- Check the sealing ring (1)
and (2)
for damage and replace the coolant line (3)
if necessary.
Parts: Sealing rings
NOTE: TECHNICAL INFORMATION
When assembling, it is essential to observe screwing sequences and tightening torques.
Failure to comply with the regulations can lead to leaks and damage. - Feed in and install coolant line (2) .
- Hand-tighten the bolts (1) .
- Tighten down screws (1)
.TIGHTENING TORQUE SPECIFICATION

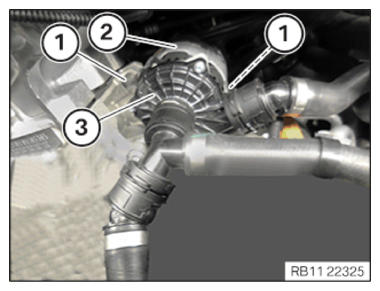

Coolant line to coolant pump/cylinder head M6x20 Tightening torque 8 Nm - Feed in and position the electric coolant pump (3) .
- Insert and install the retainer (2) .
- Make sure the retainer (2)
is positioned correctly
.NOTE: RISK OF DAMAGE
Improper screw length can cause component damage .
The use of screws of improper length can lead to component damage .- Note the correct screw length.
- Install screws that correspond to the original length.
- Tighten the screws (1) .
TIGHTENING TORQUE SPECIFICATION
| Electric coolant pump on component carrier | ||
| M6 Replace screws. |
tightening torque | 8 Nm |
Follow-up work
- Refer to INSTALLING THE DRIVE BELT FOR THE COOLANT PUMP .
- Refer to INSTALLING THE ACOUSTIC COVER FOR THE ENGINE AT THE FRONT .
- Refer to INSTALLING THE THROTTLE BODY .
- Refer to INSTALLING CHARGE AIR LINE .
- Refer to INSTALLING THE CLEAN AIR PIPE WITH THE RESONATOR .
- Refer to FILLING THE HIGH-TEMPERATURE COOLING SYSTEM WITH THE VACUUM FILLING EQUIPMENT .
- Refer to CONNECTING NEGATIVE BATTERY CABLE OF THE SYSTEM BATTERY .
- Refer to VENTING THE HIGH-TEMPERATURE COOLANT SYSTEM .
- Refer to INSTALLING ACOUSTIC COVER .
- Refer to INSTALLING THE STIFFENING PLATE .
- Refer to INSTALLING FRONT UNDERBODY PROTECTION .
