21 51 500 Removing and installing or replacing clutch release bearing/lever (M240i coupe/convertible)

NOTE: (gearbox removed)
Do not disassemble clutch operator! Otherwise there is a risk of the clutch operator being incorrectly reassembled.

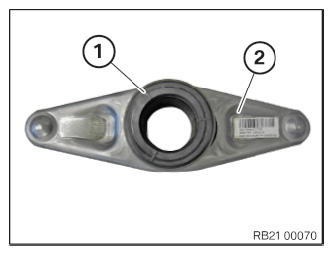

NOTE: Release bearing (1) and release lever (2) have been combined to form a clutch operator.
Do not grease sliding surfaces.

Courtesy of BMW OF NORTH AMERICA, INC.

Removal:

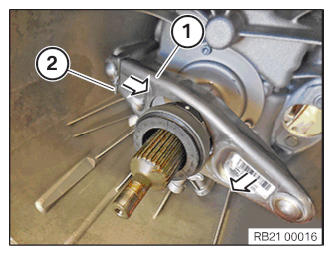

Remove clutch operator (1) from wire spring clip (2) and remove.

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Installation note:

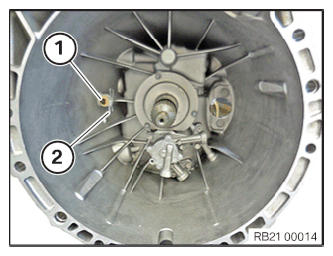

Check wire spring clip (2) and ball pin (1) for damage and replace if necessary.

Apply a thin coating of grease to ball pin (1).

Grease, refer to BMW Service OPERATING FLUIDS .

Courtesy of BMW OF NORTH AMERICA, INC.

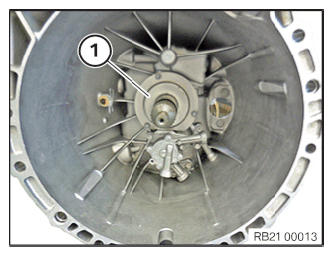

Clean guide sleeve (1).

Courtesy of BMW OF NORTH AMERICA, INC.

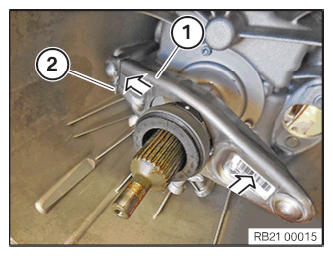

Slide release module (1) onto output shaft and clamp behind wire spring clip (2).

Installation note:

Do not grease guide sleeve.

IMPORTANT: If guide sleeve is greased, the release lever can stick on the guide sleeve.

Courtesy of BMW OF NORTH AMERICA, INC.
