Z13 Power distribution box Life module

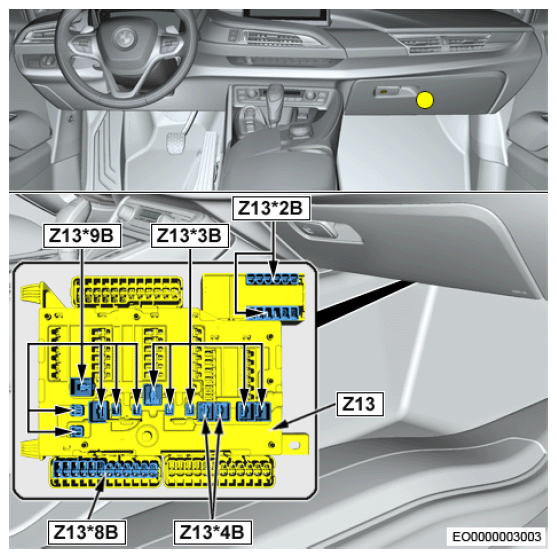

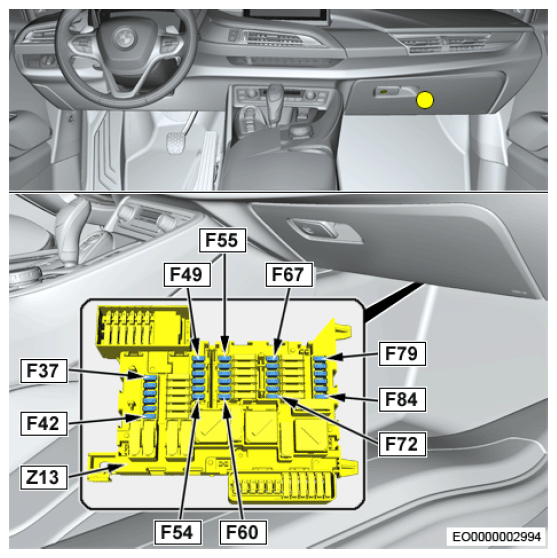

Fig 1: Z13 Power Distribution Box Life Module Fuse/Relay ID's & Location (1 Of 9)

Courtesy of BMW OF NORTH AMERICA, INC.

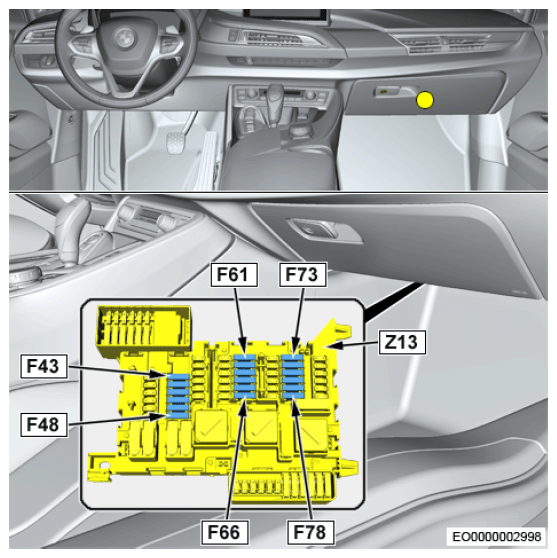

Fig 2: Z13 Power Distribution Box Life Module Fuse/Relay ID's & Location (2 Of 9)

Courtesy of BMW OF NORTH AMERICA, INC.

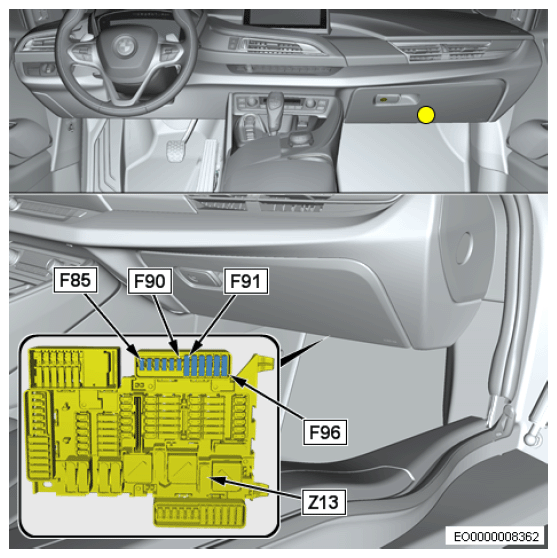

Fig 3: Z13 Power Distribution Box Life Module Fuse/Relay ID's & Location (3 Of 9)

Courtesy of BMW OF NORTH AMERICA, INC.

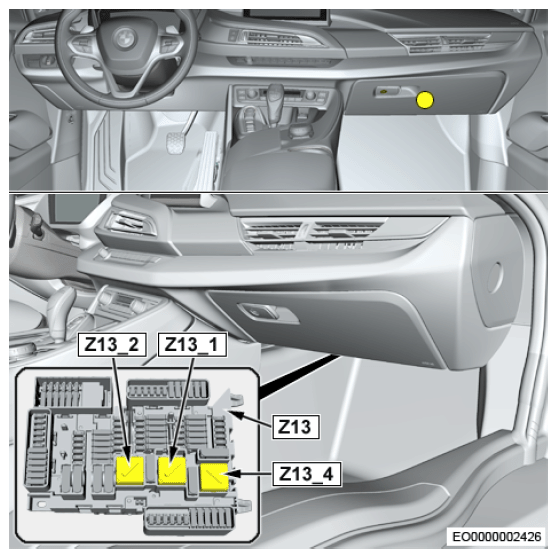

Fig 4: Z13 Power Distribution Box Life Module Fuse/Relay ID's & Location (4 Of 9)

Courtesy of BMW OF NORTH AMERICA, INC.

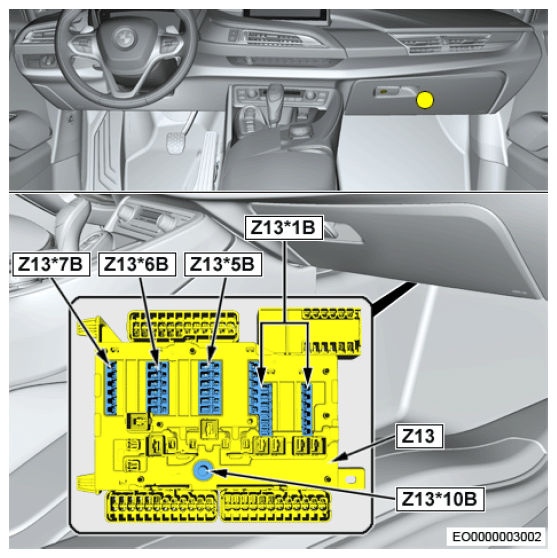

Fig 5: Z13 Power Distribution Box Life Module Fuse/Relay ID's & Location (5 Of 9)

Courtesy of BMW OF NORTH AMERICA, INC.

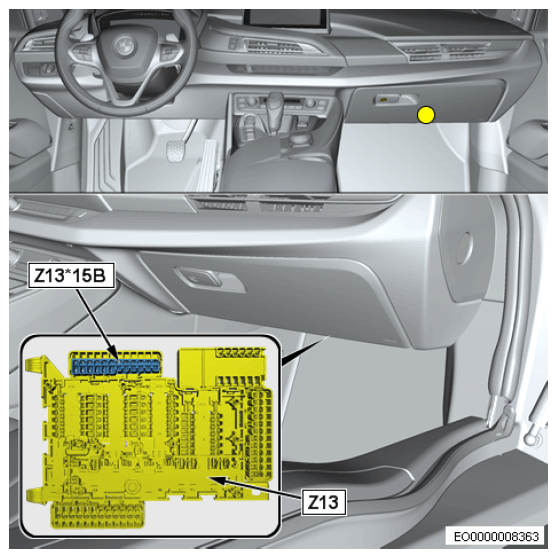

Fig 6: Z13 Power Distribution Box Life Module Fuse/Relay ID's & Location (6 Of 9)

Courtesy of BMW OF NORTH AMERICA, INC.

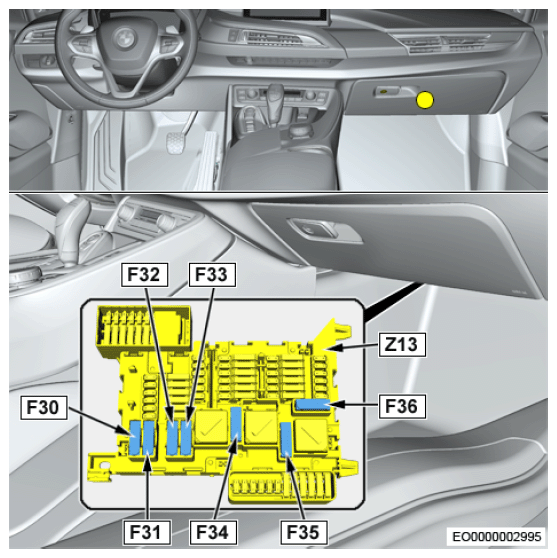

Fig 7: Z13 Power Distribution Box Life Module Fuse/Relay ID's & Location (7 Of 9)

Courtesy of BMW OF NORTH AMERICA, INC.

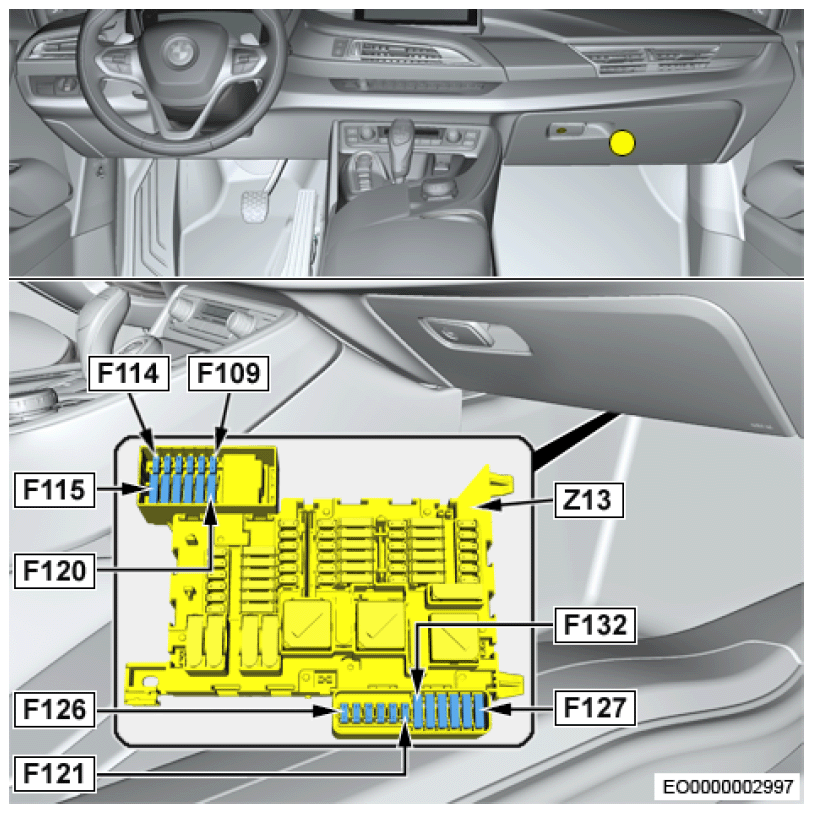

Fig 8: Z13 Power Distribution Box Life Module Fuse/Relay ID's & Location (8 Of 9)

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 9: Z13 Power Distribution Box Life Module Fuse/Relay ID's & Location (9 Of 9)

Courtesy of BMW OF NORTH AMERICA, INC.
