Installing the heat shields
Installing the heat shields

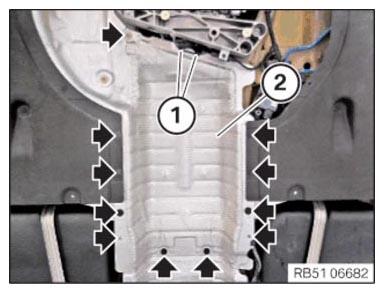

Install heat shield (1).
Tighten screws (arrows).
Courtesy of BMW OF NORTH AMERICA, INC.
Install heat shield (2).
Tighten nuts and screws (arrows).
Secure clamps (1) (B57).
Courtesy of BMW OF NORTH AMERICA, INC.
Courtesy of BMW OF NORTH AMERICA, INC.
