Installing the electric coolant pump with the holder (cylinder head cover mounted)
Installing the electric coolant pump with the holder (cylinder head cover mounted)

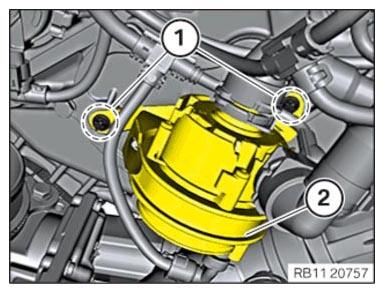

Position electric coolant pump (2) with the holder.
Tighten down screws (1).
TIGHTENING TORQUE SPECIFICATION
Holder of electric coolant pump
M6x16 screw
Tightening torque
8 Nm
