Install the connecting supports on the tunnel

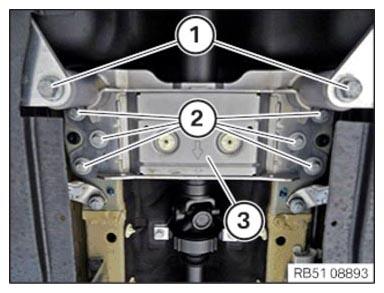

- Position connecting support (3) on tunnel.
- Replace screws (2).
Parts: Screws
- Tighten the screws (2).TIGHTENING TORQUE SPECIFICATION
Connecting support on tunnel to body Hexagon screw M 10x25 Replace screws Joining torque 56 Nm Angle of rotation 90° - Replace screws (1).
Parts: Screws
- Tighten the screws (1).TIGHTENING TORQUE SPECIFICATION
Rear reinforcement strut to the stiffening girder M 12x25 screw Replace screws Tightening torque 100 Nm Angle of rotation 90°
