Installing the cylinder head cover on the right

NOTE: TECHNICAL INFORMATION
Make sure that there are no particles or impurities in the medium openings. Coolant or foreign substances in the oil can cause engine damage such as damage to the connecting rod bearing.

Close the openings (1) on the cylinder head.

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: RISK OF DAMAGE
Damage to the surface.
The use of metal-cutting tools (e.g., emery cloths) for cleaning surfaces can damage them and lead to leaks and/or engine damage.

Do not use any metal-cutting tools.

Courtesy of BMW OF NORTH AMERICA, INC.

Clean the cylinder head in the area of the sealing surfaces (1) .
Open the openings (1) on the cylinder head.

Courtesy of BMW OF NORTH AMERICA, INC.
Check fitting sleeves (1) for damage and, if necessary, replace them.
The fitting sleeves must not be damaged or deformed or missing.

Courtesy of BMW OF NORTH AMERICA, INC.
Replace sealing ring (1) .
Parts: Sealing ring

Courtesy of BMW OF NORTH AMERICA, INC.
Replace the circular seal (1) .
Parts: Seal
Replace seals (2) .
Parts: Seals
Replace seals (3) .
Parts: Seals

Courtesy of BMW OF NORTH AMERICA, INC.

Fastening cylinder head cover on the right

Cylinder head cover: Cylinders 1 to 4

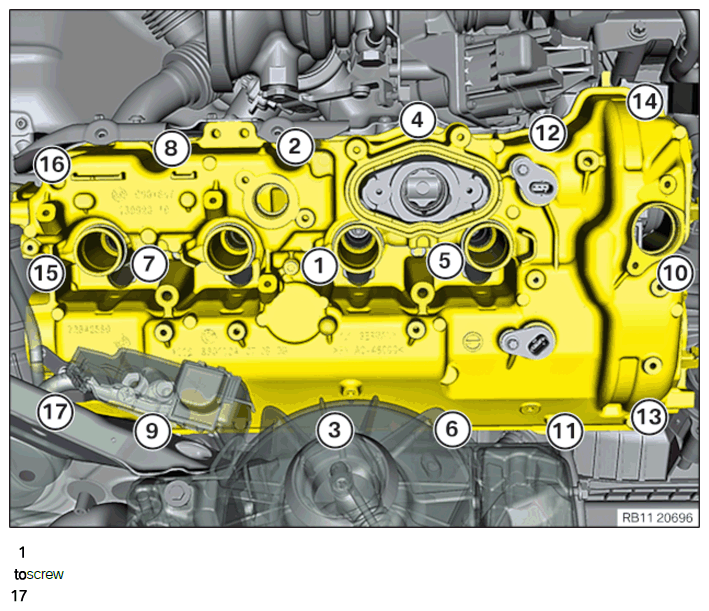

Fig 1: Cylinder Head Cover Screws Tightening Sequence

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: TECHNICAL INFORMATION
The sealing surfaces must be free of oil, grease and cleaning agents.

Insert cylinder head cover downwards and position it.
Abut bolts (10) and (15) .
The layout of screws (10) and (15) is required for exact positioning of the camshaft position sensors.
Tighten screws in the order (1) to (17) .

TIGHTENING TORQUE SPECIFICATION

Cylinder head cover to cylinder head
M6x30 screw	Tightening torque	10 Nm

Fig 2: Cylinder Head Cover Screws Tightening Sequence

Courtesy of BMW OF NORTH AMERICA, INC.

Replace the screw (1) .
Parts: Screw
Replace the sealing ring or sealing rings (2) .
Parts: Sealing ring or sealing rings

When installing sealing rings without installation aid (bar), both sealing rings must be replaced.
Position screw (1) with the sealing ring or sealing rings (2) on the oil feed line.
Position oil feed line.

Courtesy of BMW OF NORTH AMERICA, INC.

Determining the screw type and selecting the appropriate socket wrench:

Screw type	Matching socket wrench
Hexagon screw (3)	Commercial socket wrench (1)
Multi-tooth screw (4)	Multi-tooth socket wrench (2)

Courtesy of BMW OF NORTH AMERICA, INC.

Tighten down screw (1) .

TIGHTENING TORQUE SPECIFICATION

Oil feed line to exhaust turbocharger
Banjo bolt M10x1 Replace screw.	Joining torque	8 Nm
Banjo bolt M10x1 Replace screw.	Angle of rotation	70°

Courtesy of BMW OF NORTH AMERICA, INC.

Tighten down screw (1) .

TIGHTENING TORQUE SPECIFICATION

Oil feed line holder to exhaust turbocharger
M6x16 screw	Tightening torque	10 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: To provide a better overview: Illustration of surrounding parts removed.

Fix the clip (2) .
Tighten down screw (4) .

TIGHTENING TORQUE SPECIFICATION

Hexagon screw M6 with threaded bolt M5
Screw M6 with threaded bolt M5	tightening torque	10 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

Position the grounding point (5) .
Tighten nut (3) .

TIGHTENING TORQUE SPECIFICATION

Ground cable on cylinder head cover/ground pin
Nut M5	tightening torque	4.6 Nm

Tighten down screw (1) .

TIGHTENING TORQUE SPECIFICATION

Wiring harness to cylinder head cover
M6x16 screw	tightening torque	10 Nm

Positive battery cable the positive battery cable (5) .
Connect connectors (3) and lock.
Clip in the holder (2) .
Clip in the wiring harness sections in area (4) .
Connect connectors (1) and lock.

Courtesy of BMW OF NORTH AMERICA, INC.

Install both VANOS solenoid actuators of cylinder bank 1

Position VANOS solenoid actuator (1) .
Turn VANOS solenoid actuator (1) about 50° clockwise with the special tool 2 360 895 (2) until the limit positions are on the clamps.

Courtesy of BMW OF NORTH AMERICA, INC.
Position VANOS solenoid actuator (1) .
Turn VANOS solenoid actuator (1) about 50° clockwise with the special tool 2 360 895 (2) until the limit positions are on the clamps.

Courtesy of BMW OF NORTH AMERICA, INC.
Connect connectors (1) and lock.

Courtesy of BMW OF NORTH AMERICA, INC.
