Installing the trim on the side bumper panel

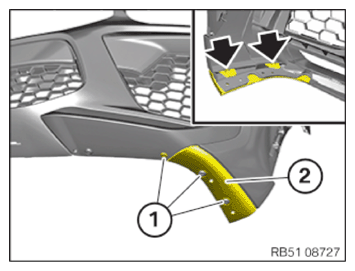

• Correctly position the trim (2)  and engage at the detents (arrows).
• Mount blind rivet (1)  using the special tool 0 496 521 (00 2 230) .

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING FRONT BUMPER COVER .
• Refer to INSTALLING THE FRONT PART OF THE LEFT FRONT AND RIGHT WHEEL ARCH COVER (PARTIALLY REMOVED) .
• Refer to INSTALLING THE LEFT AND RIGHT FRONT WHEEL ARCH TRIM (PARTIALLY REMOVED) .
• Refer to INSTALLING FRONT ORNAMENTAL GRILLE .
• Refer to PUTTING THE FRONT RADAR SENSORS INTO OPERATION .
